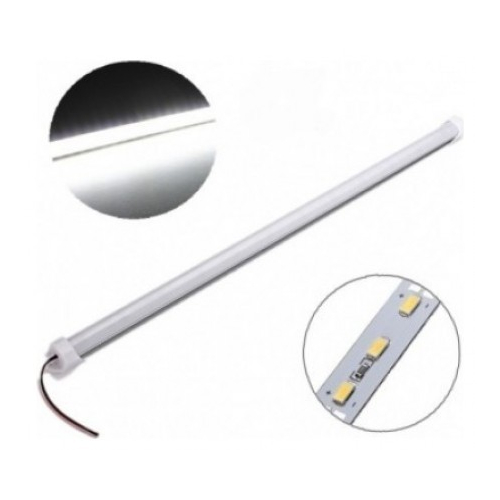

LED Rigid Bar V-TAC 18W 12V SMD4014 1M Ψυχρό Λευκό

Specifications
General
SKU | 2543 |
---|---|
LED chip type | SMD4014 |
Electrical Data
Wattage | 18W |
---|---|
Voltage | 12V |
Amperage | 1.5A |
Power supply | The wattage of the LED strips is given by meter. You need power supply for all LED strips. Depending on the length of the LED strip you need, you can calculate the wattage of the power supply you need. For example, if you have chosen a strip with wattage - 10W per meter and you need 15 meters (3 rolls, 5 meter each) the way to see which power supply you need is multiplying the wattage of the strip per the meters you need. In our example, it will be 10W x 15 meters = 150W. The power supply has to be minimum 150W, it is always good to add around 20% on top of the total wattage in order to make sure the power will be enough. |
Light technical data
Light colour | White |
---|---|
Colour temperature | 6400K |
Beam angle | 120° |
Lumens | 1700 lm |
LED quantity | 72 LEDs |
Color stability | <6 |
Capabilities
IP Rating | IP20 Non-waterproof |
---|---|
Dimmable | No |
Working conditions | Not suitable for use in extreme conditions. Normal working conditions is -20° +45° |
Declared peak intensity in candelas (cd) | / |
Dimensions & weight
Length | 1 m |
---|---|
Width | 10 mm |
Lifespan
Average expected life time | 20 000 h |
---|---|
Number of switching cycles | 15000 |
Certificates & standards
EEI – Energy Label | Yes |
---|---|
CE | Yes |
RoHS | Yes |
Energy efficiency class | A+ |
EAN Code | 3800157625968 |
Product code | VT-4014 |
Warranty | 2 years |
Γωνία Δέσμης Φωτισμού:
120°
Τάση Λειτουργίας:
12 volt DC
Κατανάλωση :
18W/m
Κατασκευαστής:
Φωτεινότητα Lumen:
1700lm
Ντιμάρεται:
Ναί
Ψυχρό Λευκό:
Ναί
