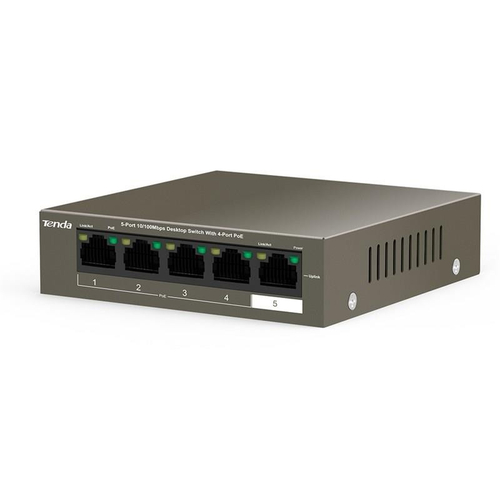

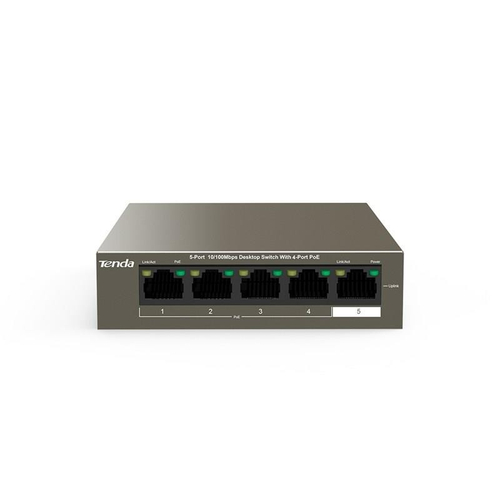

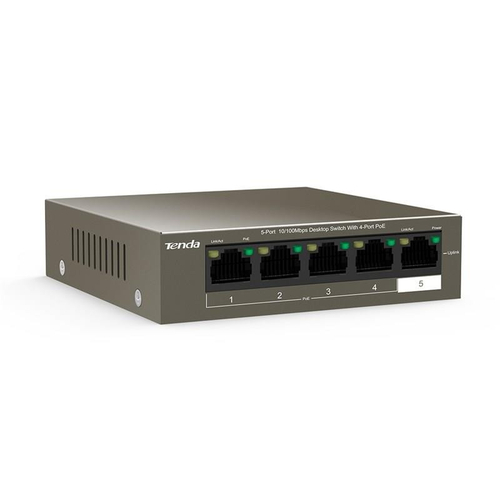

TENDA PoE SWITCH TEF1105P-4-38W 5-PORT 10/100Mbps, 4-PORT PoE - TD-TEF1105P

TEF1105P-4-38W is a Tenda PoE switch that offers 5 10/100 Mbps Base-TX RJ45 ports.Up to 250 meters long distance transmission, beyond hundred meters transfer limit.6KV lighting protection PoE switch is the real monitoring private switch .Ports 1-4 support IEEE 802.3af PoE standard. It provides 15W maximum PoE output a single port and 35W the whole device.6KV lighting protection PoE switch is the real monitoring private switchIn the real project, AP or IP cameras are often installed outdoor or the higher position, which is also increases the risk of cameras and PoE switches impact by the lightning shock .The result is the individual equipment damaged, or lead to the whole local area network (LAN) paralysis. Tenda TEF11 series switches have the professional lightning protection design -up 6 kv port and power supply thunder prevents , with two levels of protection design respectively, effectively restrain the power of lightning from cable, which equivalent to give the entire network monitoring system with a security fence. The test standard is much higher than the national CE request. In thunderstorms weather, it can also provide monitoring system or local area network stable, reliable service, protect the images transmission be normal.Up to 250 meters long distance transmission beyond hundred meters transfer limitDue to the complex monitoring environment, when making cabling and networking , it very often to encounter the problem of inadequate network transmission distance, the distanceof each camera terminal to the monitoring center is different, some only a few meters, some hundred metres, while others are more than kilometers.Tenda TEF11 series PoE monitoring switches, exclusive patent network extension technology, use the common existing twisted pair, can support 250 meters data transmission, break the existing twisted pair hundreds meters transmission limit ;Provide gigabit linked light port , can meet the demand of transmition to a few tens of kilometers.35W PoE power supplysimplified wiringPorts 1-4 comply with the IEEE802.3af power supply standards. The entire switch offers a maximum PoE power output of 35W, whereas each port offers a maximum PoE power output of 15W. The ports can be used to supply power to and exchange data with APs and IP cameras.Standard&ProtocolIEEE 802.3?IEEE 802.3u?IEEE 802.3ab?IEEE 802.3afIndicator5*Link/Act per device4*PoE per device1*Power per deviceInterface4 10/100Base-Tx ports(Data/Power)1 10/100Base-Tx port(Data)PortsLightning Protection: 6KVStore & ForwardYesexchange capacity1 GbpsPackage Content0.744MppsMAC Address Table1KPoE supply managementPort 1-4 support IEEE802.3af PoE standardPoE through pin1 2 4 5 +,3 6 7 8 -Power InputAC:100-240V~50/60HzDimension100*100*26mm( W x D x H )Power Consumptionin full configuration:<38WPoE Max Power Supply:35WPort FeaturesStandard: the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other.Extend Mode: If Extend mode is enabled, Port 1-4 will be isolated respectively (10Mbps auto-negotiation).And the delivery distance of powering and network data is up to 250m (10Mbps).EnvironmentOperating Temperature: 0?~40? (32?~104?)Storage Temperature: -40?~70? (-40?~158?)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing
