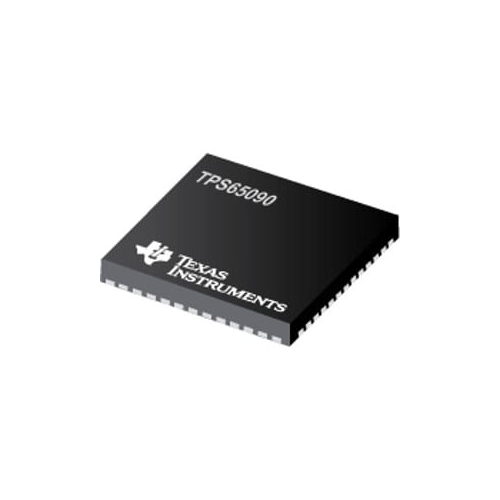

TPS65090A

The TPS65090A device is a single-chip power management IC for portable applications consisting of battery charger with power path management for a dual or triple Li-Ion or Li-Polymer cell battery pack. The charger can be directly connected to an external wall adapter. Three highly efficient step-down converters are targeted for providing a fixed 5V system voltage, a fixed 3.3V system voltage, and an adjustable voltage rail. The step-down converters enter a low power mode at light load for maximum efficiency accross the widest possible range of load currents. The step-down converters allow the use of small inductors and capacitors to achieve a small solution size. The TPS65090A also integrates two general-purpose always-on LDOs for powering circuit blocks which control the system while shut down. Each LDO operates with an input voltage range from 6V to 17V, allowing the LDOs to be supplied from the wall adapter or directly from the main battery pack.Seven load switches are built into the device. These load switches can be used to control the power supply individually for certain circuit blocks in the application circuit. The current blocks in the application circuit. The current flowing through the load switches, as well as the output current of the step-down converters, the input current is monitored and can be read out using the digital interface.
